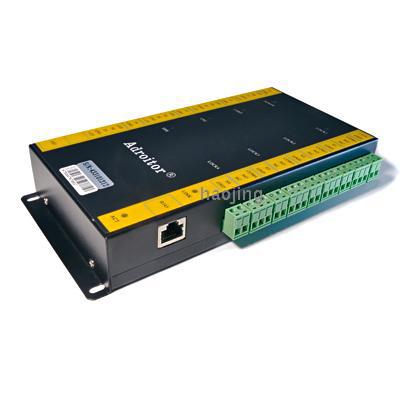

Product Brief
The Cloud Gate Control Controller can be selected as single door, double door, or four door, using high-end 32-bit CPUs from top international brands, high-speed intelligent ARM platform, unlimited expansion space, supporting 4G communication, mobile phone door opening, Bluetooth door opening, QR code door opening, video image capture, providing secondary development packages and technical guidance docking, complete management platform, attendance, access control, patrol and other management.
Product Description
Product description
1. The advanced design platform adopts high-end 32-bit CPUs from top international brands, high-speed intelligent ARM platform, and unlimited expansion space
2. The high-speed computing circuit design has fast computing speed, even if it is fully stored, the card will open the door instantly after swiping, without any feeling of delay
3. The pure TCP/IP high-speed communication method optimizes and advances the communication quality, speed, and real-time performance of the system
4. Priority is given to using high-quality surface mount technology for stability, with a large number of anti misconnection designs. Professional grade access control linear power supply is standard, with a low temperature of minus 35 degrees and a high temperature of 65 degrees. Aging tests are conducted in harsh environments to ensure system stability and long-term uninterrupted operation
5. An approachable multilingual Windows software interface that can be easily mastered without professional knowledge, with quick installation and easier training
6. Independent intellectual property rights and open data communication protocols make your system integration more convenient and enjoy more thoughtful and cutting-edge technical support
Detailed specifications
Control mode: Four doors with card swiping for entry and exit buttons
Number of management doors: 1
Number of card readers that can be connected: 4
Input format: wiegand26-40bit compatible with all card readers and biometric devices under this protocol
Storage registration card (user card): 40000
Offline storage records: 100000
Communication method: TCP/IP
Number of connections: unlimited
Supporting software: Simplified Chinese, English
Supported databases by supporting software: Access and SQL
Controller size: 220mm length * 120mm width * 35mm height
Power supply: DC12V
Operating temperature: -35 to 65 degrees Celsius
Operating humidity: less than 95% RH, no condensation
Access control dedicated standard chassis power size: 273mm long * 228mm wide * 65mm high
Working voltage: AC220V or AC110V
Power supply: 12V3A
Feature Overview
Not only does it have commonly used access control functions, such as offline operation, real-time monitoring, photo display, massive storage, flexible permission settings, remote door opening, multi-user management, batch and small quick settings, convenient query, report statistics format modification and printing output to Excel files, card+password, door long-term open alarm, illegal card swipe alarm, first card open door, illegal intrusion alarm, timed door opening, electronic map and other functions.
And it also has many industry-specific functions for professional or industry users (such as bank vaults, telecommunications, power, mobile prisons, public security, etc.), such as interface locking, coercion alarm, fire linkage, anti submarine return and anti tailgating, interlock, multi card opening, emergency double closing, number of people inside the door inquiry, internal and external verification opening, etc.
At the same time, it has some targeted special functions, such as video management (card swiping capture, card swiping recording), mobile SMS (card swiping record, alarm information, etc. sent to designated mobile phones), mobile APP door opening (LAN WIFI or 2G/3G/4G mobile network can all open the door), master card setting (offline card issuance), etc.
In addition, the access control management software also comes with regular and multi shift attendance management software, fixed meal management software, meeting attendance management software, online patrol management software, WEB management software, etc.
